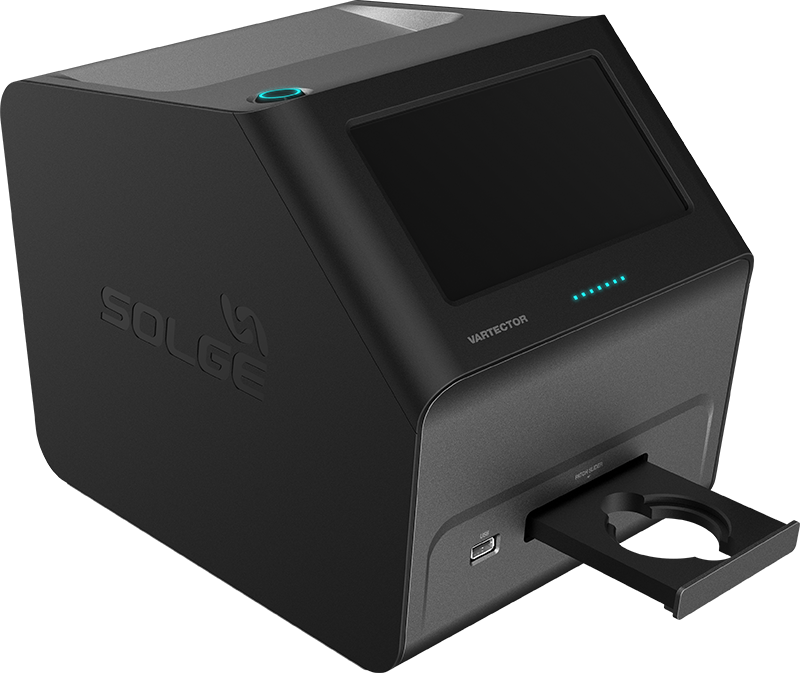

Outline

VARTECTOR diagnoses the risk of varnish or soot formation with the CIE Δ E and Δ a+b value in ASTM D7843-21, for the potential risk of varnish or soot in turbine oil and control oil.

The potential danger of varnish in turbine oil warns that problems such as vibration and temperature rise of turbine spindle bearings, filter clogging, poor temperature control, and degradation of turbine oil may occur.

Function and Features

Unlike the existing portable MPC tester in the market, all processes such as patch production, sample loading, validation, and testing are automatically performed within 10 seconds.

Patch images, MPC Δ E, ΔL, Δa+b values, and trends for each managed machine

The world's first/only MPC tester for laboratory that meets ASTM D7843-21 for both mineral based turbine oils and phosphate ester-based oils.

Automatic diagnosis of measured results (Normal a, Normal b, Caution, Warning)

Unlike the existing simple portable MPC Tester, it automatically performs device validation after power on

Automatic self diagnostic function : Perform self-diagnosis of major components such as Spectrophotometer and Board after power on

Benefits

Varnish mineral based turbine oil and Soot of phosphate ester based control oil can be identified by measuring  Δ E, ΔL and Δa+b.

VARTECTOR fully complies with ASTM D7843-21 for both mineral based turbine oil and phosphate ester based control oil

Outline

Ferro-Mon Sensor generates magnetic flux when magnetic particles (typically Fe, Ni, etc.) are collected in the sensor probe, and this change in magnetic flux increases in proportion to the amount of magnetic material collected in the sensor probe. This sensor detects and evaluates the abnormal wear state of the rotating machine by outputting the amount of magnetic material as “Fe saturation %” value in real time.

Function and Features

Strong trapping ability of ferrous wear particles

It has 2 output channels (fine particles, large particles) so that normal wear and abnormal wear can be detected separately

Real-time monitoring of iron content (concentration %)

Easy installation

Full scale and zero setting possible by operator on site

사용처

Gearbox (such as wind turbine gearbox), Transmission, Pump, Bearing Lubrication System

Benefits

Ferro-Mon Sensor can be applied to all equipment. Particularly, when applied to gearbox, engine, transmission, pump, bearing, etc., which are vulnerable to wear, user can get the best effect.

Outline

The Oil-Mon Sensor is a system that monitors the degradation state of the oil used, the state of contamination by equipment wear or external contaminants, and the state of moisture in real time. It is also possible to manage four parameters with only one sensor.

Function and Features

Multi-parameters measurement with one sensor (4 parameters)

Initialization and maximum scale setting possible in the controller

Alarm sound when an alarm occurs

Real-time data transmission by connecting to PC

사용처

Hydraulic HPU, Wind Power Generator, Gearbox, Transmission, Mobile (Vehicle), and Other Lubrication Equipment

Benefits

Reduce maintenance cost

Reduce the cost of changing lube oil

Easy to determine the life of lube oil

Improves equipment reliability and extends equipment lifespan

Function and Features

Can visually check degradation status of used oil

Can visually check ferrous wear particles by built-in magnetic rod

Suitable for condition management by visually identifying amount of free water ingress.

Prevent oil leakage by dual protection chamber even in case of breakage caused by frozen water during winter season

Application

Gearbox, Pump

Oil Reservoir

Oil Tank

Cooler

Benefits

Rapid visual detection of water ingress and discharge of water thru drain valve

Prevention of equipment failure. Life extension of equipment and lube oil.

Easy management through visual check

Function and Features

Accurate oil level check from various angles

Multi-function port provides sampling port. Built-in magnetic rod collects ferrous wear particles

Minimize the possibility of leakage in case of damage by adopting double transparent chamber

Increased safety by applying chemical-resistant and impact-resistant materials

사용처

Hydraulic tank

Gearbox

Pumps

Lubrication Equipment on the oil level check point

Benefits

Prevention of equipment failure. Life extension of equipment and lube oil.

Hight visibility from various angles

기타

Patented product (No. 10-1539025)

Outline

SH-FAC02 is a portable and high-speed kinematic viscometer integrated with an automatic cleaning system, developed to quickly and easily measure the kinematic viscosity of transparent and opaque Newtonian fluids (including new and used oils) at various sites and at various ambient temperatures.

Function and Features

Compact and excellent portability: Small size and light weight product

Automatic cleaning system: It is automatically cleaned when the cleaning liquid is injected

Rapid measurement without any restrictions on location: Measurement can be performed anytime, anywhere, and results are usually produced within 1 minute

Safe: Stored in a custom/carrying case (waterproof and cushioning) with integrated design, easy to carry and safe

Ease of use: Easy to use even for beginners

Long battery life: Lithium batteries can maintain at temperature of 100 °C for 10 hours

사양

Standard: ASTM D7279, D445

Measurement range: 2 ~ 2000 ㎟/s(cSt)

Accuracy: ≤1%

Repeatability: ≤1%

Temperature controlling accuracy: 0.1℃

Temperature controlling range: 40 ~ 100℃

Sample dosage: 30 ~ 100μL

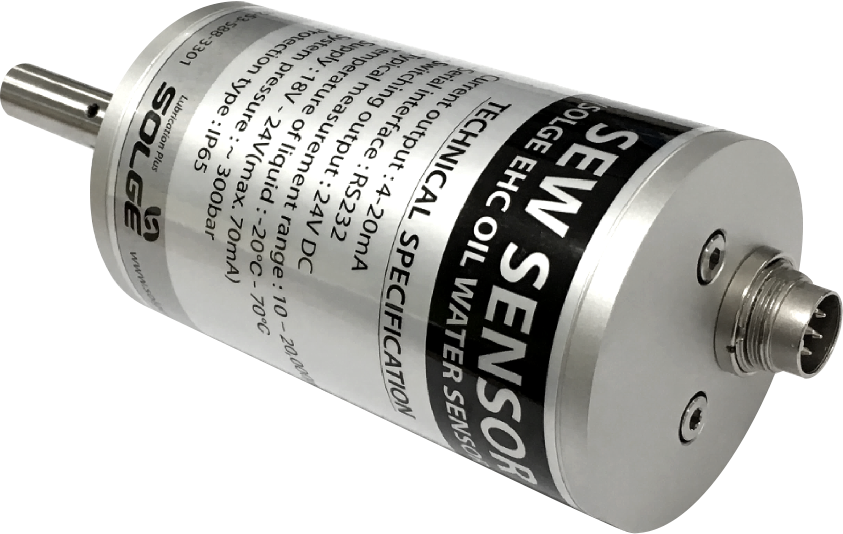

Outline

The first cause of degradation of EHC oil (phosphate ester) is hydrolysis due to water contamination, which generates acid and alcohol. Therefore, constant monitoring and prompt removal of moisture in EHC Oil are essential when reaches above TAN 0.2

Function and Features

Accurate moisture content measurement with temperature compensation.

The only on-line sensor that measures the moisture content of the existing phosphate ester control oil in terms of absolute moisture (ppm) rather than relative (RH%) values.

The SEW sensor is a moisture sensor for phosphate ester-based control oil.

It is installed in the EHC system and monitors the water contamination status of the control oil in real time.

This sensor is supplied calibrated to be compatible with ASTM D4928, D1533, D6304 Karl Fischer Moisture Meter

Measuring range: 0 – 6,000ppm (may vary depending on operating temperature and type of control oil)

For the Karl Fischer Moisture Meter, consumables such as Karl Fischer reagent should be replaced periodically, but the SEW Sensor does not have any consumables during the period of use.

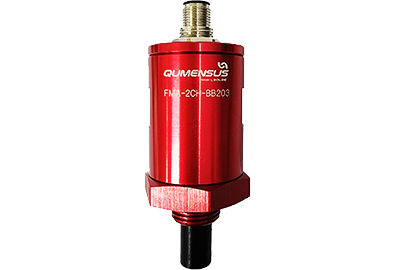

Outline

Ferro-Mon Sensor generates magnetic flux when magnetic particles(typically Fe, Ni, etc.) are collected in the sensor probe This sensor detects and evaluates the abnormal wear state of the rotating machine by outputting the amount of magnetic material as “Fe saturation %” value in real-time

It has 2 output channels(fine particles, large particles) so that normal wear and abnormal wear can be detected separately

Real-time monitoring of iron content(concentration %)

Easy installation

All-in-one type with probe and control board mounted on one sensor.

Benefits

Ferro-Mon Sensor can be applied to all equipment. Particularly, when applied to gearbox, engine, transmission, pump, bearing, etc., which are vulnerable to wear, user can get the best effect

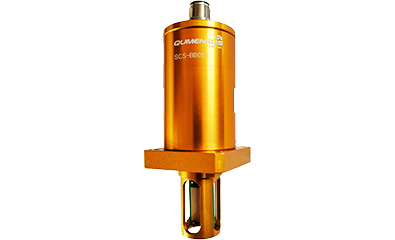

Outline

Contaminants such as oxidation products, water and glycols change the dielectric properties of oils. The more contaminated the oil, the higher the permittivity, and the change in permittivity that varies depending on the degree of deterioration of the oil is measured and displayed

Benefits

Measuring range : 1 to 7 steps

RS 485 and CAN (J1939) output

Analog output (4 ~ 20mA)

Operating power : 12~28V

Operating temperature : -20 to +80°C

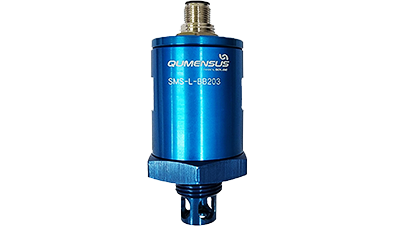

Outline

By measuring the capacitance contained in the oil using the principle that the capacitance changes according to the molecular weight of water adsorbed to the polymer material, the moisture in the oil is expressed as relative humidity (RH%)

Benefits

Measuring range : 0 to 100% RH% displayed

Measuring range: 0 to 100% displayed

RS 485 and CAN (J1939) output

Analog output (4 ~ 20mA)

Operating power : 12~28V

Operating temperature: -20 to +80°C

Outline

This device can check the data on the monitoring screen by connecting various measurement sensors

Compact, light and easy to carry

Graphs, statistics, and quantitative data figures for overall diagnosis are displayed

It can be applied to equipment that require early detection of lubricant contamination and abnormal failures

Benefits

Can monitor by connecting various measuring sensors

Graphs and statistics, quantitative data figures are displayed

Integrated diagnosis of lubricating oil condition

Compact with light weight, easy to carry

Max 4 sensors can be connected and monitored
