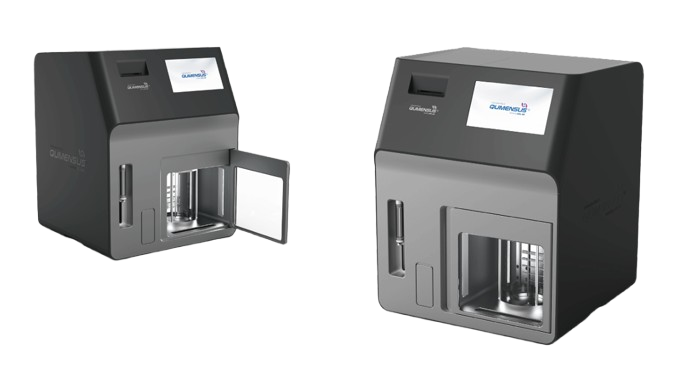

This device measures the particle size and number of contaminants in oil.
Based on the principle of light blockage / shading light, the instrument is used in various industries such as power generation, aviation, aerospace, oil refining, petrochemicals, iron and steel, paper, cement, transportation, ports, hydraulics, metals, machinery, automotive production, etc. It can also measure particles in various oils (hydraulic oil, lubricating oil, engine oil, turbine oil, gear oil, aviation oil, etc.)

• Accurate and fast detection based on laser light blocking principle with excellent repeatability and accuracy
• Sample system using a precision syringe allows for accurate sample volume control and fast results
• Water (RH% or ppm) and turbidity (ASTM D4176) measurement available
• Positive/negative pressure regulator re moves gas(bubble) from the sample and enables measurement of highly viscous samples
• Touchscreen color LCD display for easy and convenient menu control
• Built-in standard specifications (ISO4406, NAS1638, SAE AS 4059, etc.) for checking contamination levels
• 16 particle size channels can be randomly set, used to facilitate particle size analysis test.
• Test results can be stored, retrieved and analyzed
• Data storage function used to facilitate the detection of data archiving, retrieval, and analysis
• Built-in printer for immediate printing of results
• Sample size, measurement speed, and cleaning speed can be adjusted
• RS232 software for data transfer to an external computer
• Dual calibration function using ISOMTD, ACFTD, etc. can be set according to the desired size and standard substance
