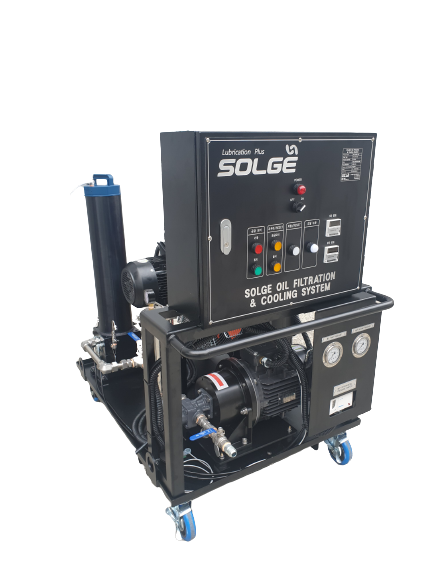

Cooling & Filtration System for high temperature and high viscosity oil

▪ Fitted with reusable 200 mesh filter with magnetic rod and absolute 25 µm particle
filter together with large-sized cooling fan
▪ Suitable for application requiring both purification and cooling
▪ Can be applied to high viscosity oil up to 680 cSt

▪ Can remove fine ferrous particles by built-in high-performance magnetic rod
▪ Fitted with reusable mesh filter by cleaning
▪ Fitted with absolute filter (Bypass is possible)
▪ Rapid oil temperature drop by applying a large-sized cooling fan
▪ Can be applied to bad environment on industrial sites due to easy operation and
enhanced durability
▪ Safe operation possible due to safety device such as oil leakage sensor and
differential pressure switch
▪ Can be applied to high viscosity oil up to 680 cSt
