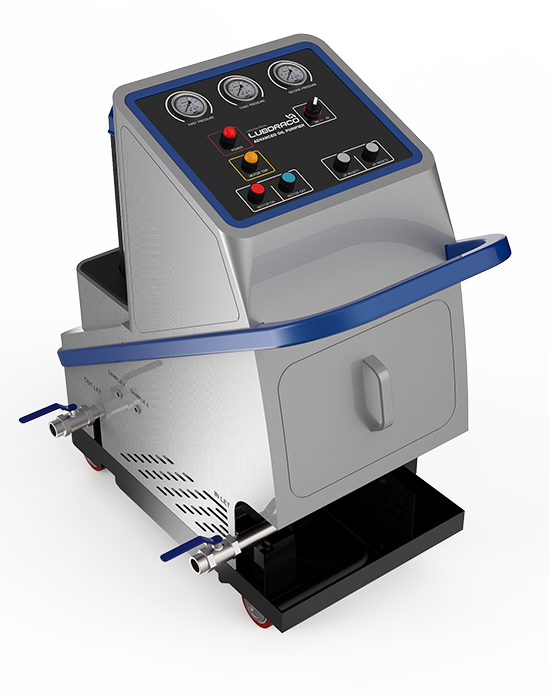

Function and Features

In addition to the particle removal function, it can remove water by adopting a water band filter, and also can remove even degraded by-products like varnish / sludge / acid by installing VR filter.

Flexible selection of target contaminants to be removed (Particles/Moisture/Degraded by-products)

Application

Equipment using all mineral based oil and synthetic oil

Power Plant, Petrochemical, Refinery, Steel Mill, Paper, Cement, Military, and others

Benefits

Prevention of equipment failure and life extension, lube oil life extension

Effects such as prevention of varnish formation, bearing temperature rise, control valve malfunction and wear, and early filter clogging, etc.

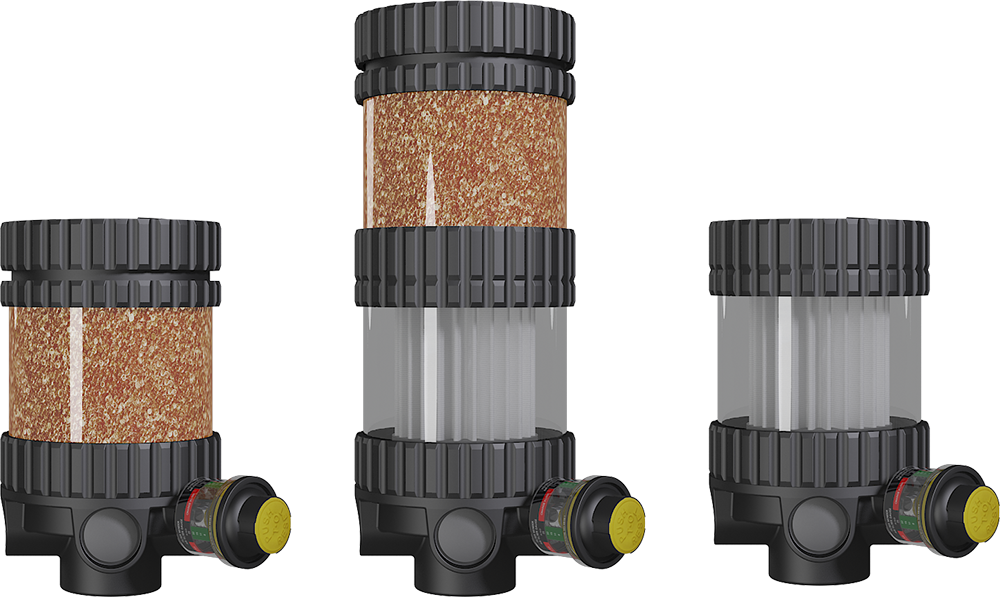

Function and Features

Prevents ingress of humid air and dust into the tank, reservoir, reducer, etc.

Individual mounting and replacement of particle removal module and water removal module

Maximize lifespan of the desiccant by built-in check valve

Easy visual check of lifespan of desiccant by color

Fitted with differential pressure gauge to check filter clogging (optional)

Application

Lubrication / Hydraulic tanks, Gearbox, Bearing housings, Oil storage tanks, and other Reservoirs

Power plant, Petrochemical, Refinery, Steel, Paper, Cement, Military and others

Benefits

Cost saving by replacement of used module compared to the existing one-piece disposal type

Prevention of equipment failure, life extension, and lube oil life extension

Prevention of ingress of moisture and particles

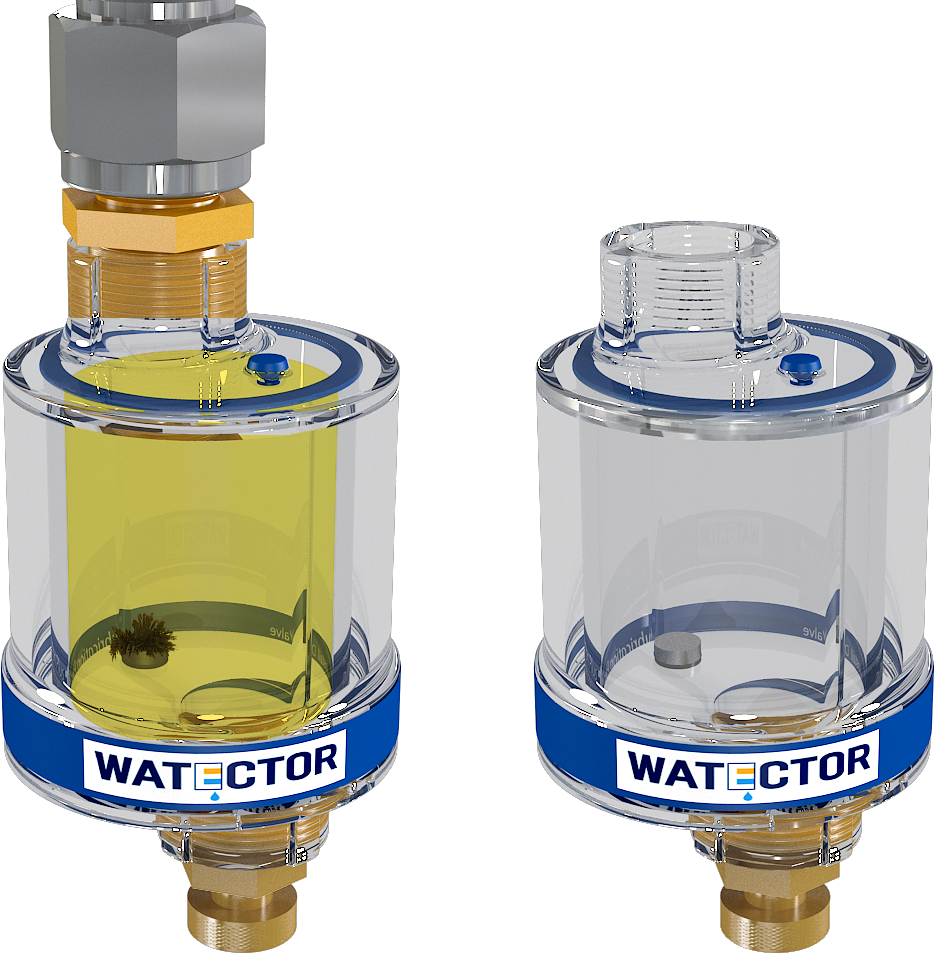

Function and Features

Can visually check degradation status of used oil

Can visually check ferrous wear particles by built-in magnetic rod

Suitable for condition management by visually identifying amount of free water ingress.

Prevent oil leakage by dual protection chamber even in case of breakage caused by frozen water during winter season

Application

Gearbox, Pump

Oil Reservoir ▪ Oil Tank ▪ Cooler

Benefits

Rapid visual detection of water ingress and discharge of water thru drain valve

Prevention of equipment failure. Life extension of equipment and lube oil.

Easy management through visual check

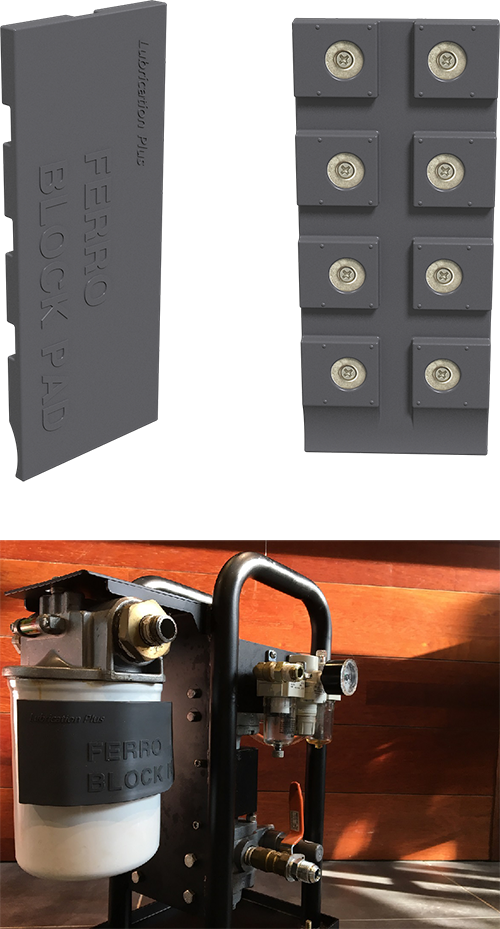

Function and Features

Remove fine particles (ferrous wear particles) with below 1㎛

Remove non-ferrous metal particles

Extend life of spin-on filter element

Extend life of lube oil and additives

Permanent use

Reduce equipment wear and prevent failure of hydraulic system

Application

Lubrication / Hydraulic filter housing

All spin-on filters for vehicles and stationary equipment

Benefits

Prevention of equipment failure. Life extension of equipment and lube oil.

Extension of line filter life

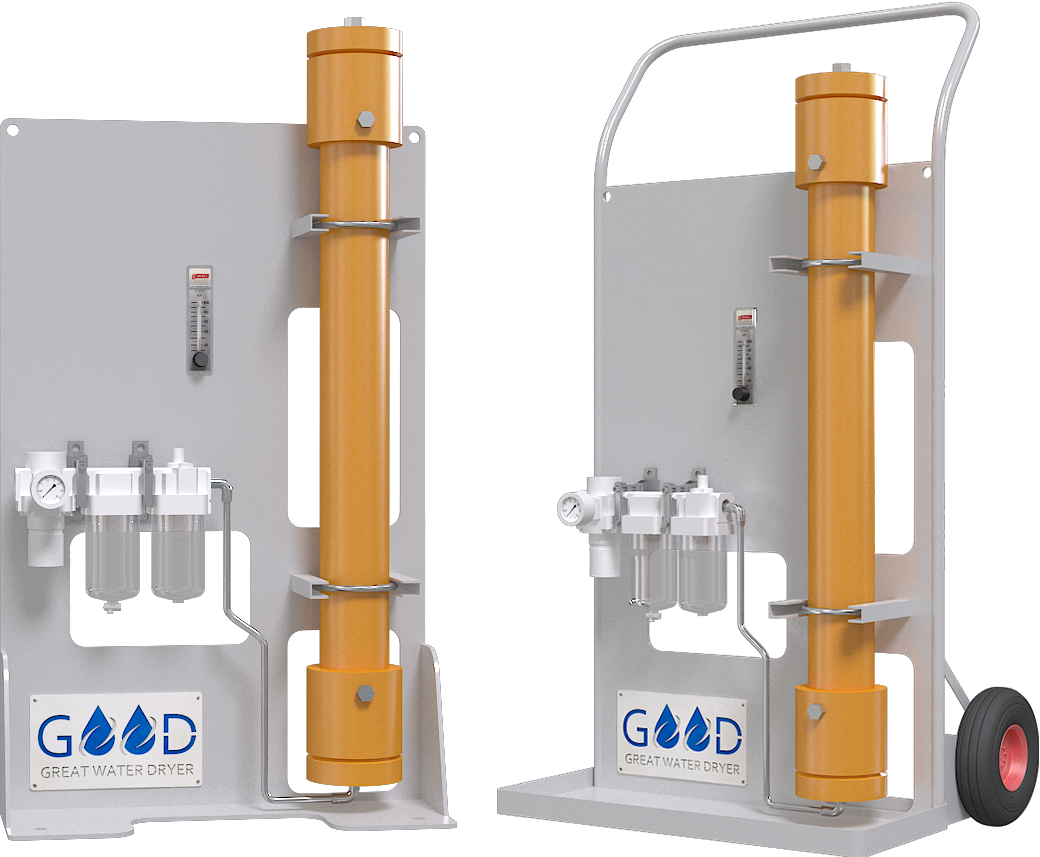

Function and Features

A unit that generates super-dry nitrogen (max. dew point -60℃ or below) by connecting utility (compressed) air from the site.

Prevents condensation by continuously injecting dry nitrogen into reservoir or tank, prevents ingress of external contaminants through air and removes moisture in lubricating oil.

Prevents oxidation of oil with air (oxygen) by supplying nitrogen.

Application

Lubrication / Hydraulic tanks, Gearboxes, Bearing housings, Oil storage tanks, and other Reservoirs

Power plant, Petrochemical, Refinery, Steel, Paper, Cement, Military and others

Especially recommend for cooling tower reducers, steam turbine bearings, wind turbines, and EHC units that are exposed to high moisture.

Benefits

Prevention of equipment failure. Life extension of equipment and lube oil.

Prevention of moisture contamination of lubricating oil, and ingress of contaminated particles

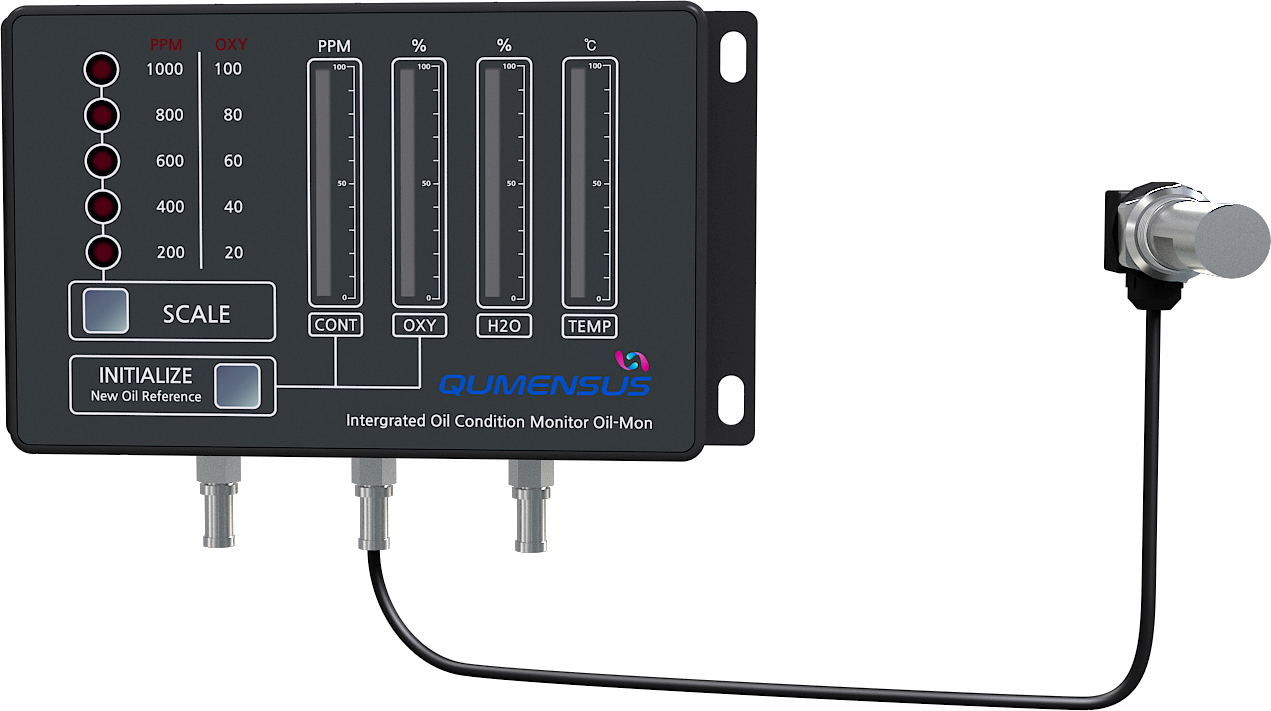

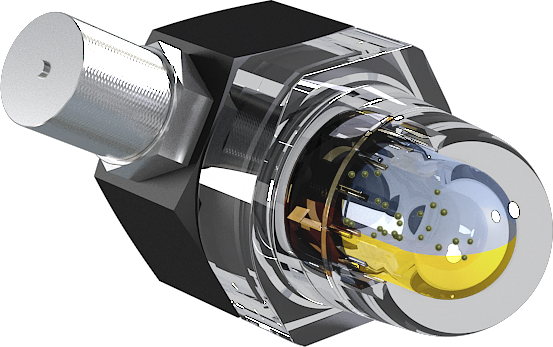

Outline

The Oil-Mon Sensor is a system that monitors the degradation state of the oil used, the state of contamination by equipment wear or external contaminants, and the state of moisture in real time. It is also possible to manage four parameters with only one sensor.

Function and Features

Multi-parameters measurement with one sensor (4 parameters)

Initialization and maximum scale setting possible in the controller

Alarm sound when an alarm occurs

Real-time data transmission by connecting to PC

Application

Hydraulic HPU, Wind Power Generator, Gearbox, Transmission, Mobile (Vehicle), and Other Lubrication Equipment

Benefits

Reduce maintenance cost

Reduce the cost of changing lube oil

Easy to determine the life of lube oil

Improves equipment reliability and extends equipment lifespan

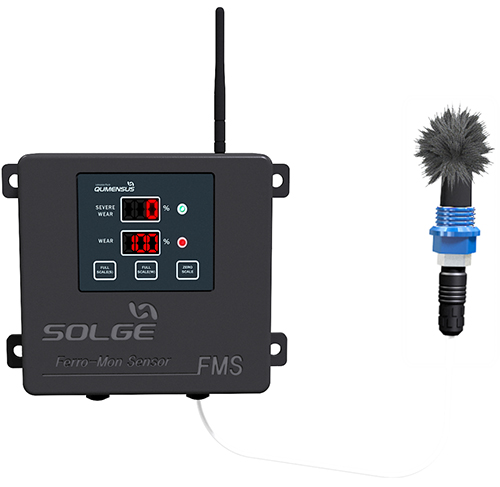

Outline

Ferro-Mon Sensor generates magnetic flux when magnetic particles (typically Fe, Ni, etc.) are collected in the sensor probe, and this change in magnetic flux increases in proportion to the amount of magnetic material collected in the sensor probe. This sensor detects and evaluates the abnormal wear state of the rotating machine by outputting the amount of magnetic material as “Fe saturation %” value in real time.

Function and Features

Strong trapping ability of ferrous wear particles

It has 2 output channels (fine particles, large particles) so that normal wear and abnormal wear can be detected separately.

Real-time monitoring of iron content (concentration %)

Easy installation

Full scale and zero setting possible by operator on site

Application

Gearbox (such as wind turbine gearbox), Transmission, Pump, Bearing Lubrication System

Benefits

Ferro-Mon Sensor can be applied to all equipment. Particularly, when applied to gearbox, engine, transmission, pump, bearing, etc., which are vulnerable to wear, user can get the best effect.

Function and Features

Accurate oil level check from various angles

Multi-function port provides sampling port. Built-in magnetic rod collects ferrous wear particles

Minimize the possibility of leakage in case of damage by adopting double transparent chamber

Increased safety by applying chemical-resistant and impact-resistant materials

Application

Hydraulic tank

Gearbox

Pumps

Lubrication Equipment on the oil level check point

Benefits

Prevention of equipment failure. Life extension of equipment and lube oil.

Hight visibility from various angles

기타

Patented product (No. 10-1539025)

Function and Features

Collects oil mist and returns it back into the tank

Robust metal product

Easy to install and remove

Application

Lubrication / Hydraulic Tank, Reducer, Bearing, Storage Tank, Reservoir

Equipment generating oil mist

Benefits

Can remove small amount of oil mist

Prevention of oil level decrease due to mist generation

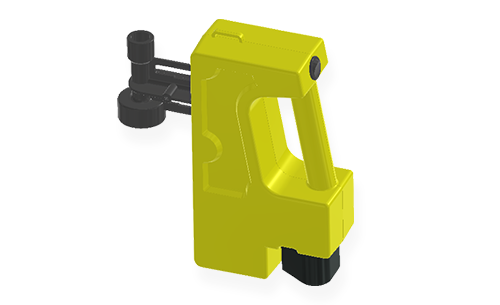

Function and Features

Oil extraction into the sample bottle by integrated vacuum pump driven by electric motor

Convenient and easy sampling compared to manual type

Robust. One-handed grip

Adopted clamping spec for clean vacuum standard sample bottles

One-touch operating switch

Sampling speed can be adjusted by integrated speed control valve

Samples can be collected without external contamination

Stable carriage and collection with shoulder strap (Optional)

Replaceable battery

Application

Mobile(Vehicles) and other stationary equipment

Specification

Viscosity : 320cst

Flow rate : 1 lpm

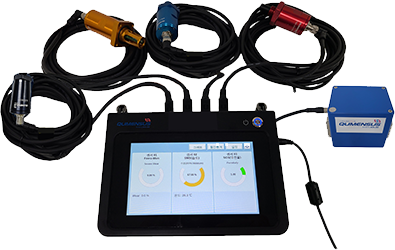

Outline

This device can check the data on the monitoring screen by connecting various measurement sensors

Compact, light and easy to carry

Graphs, statistics, and quantitative data figures for overall diagnosis are displayed

It can be applied to equipment that require early detection of lubricant contamination and abnormal failures

Benefits

Can monitor by connecting various measuring sensors

Graphs and statistics, quantitative data figures are displayed

Integrated diagnosis of lubricating oil condition

Compact with light weight, easy to carry

Max 4 sensors can be connected and monitored
